Amagansett, NY

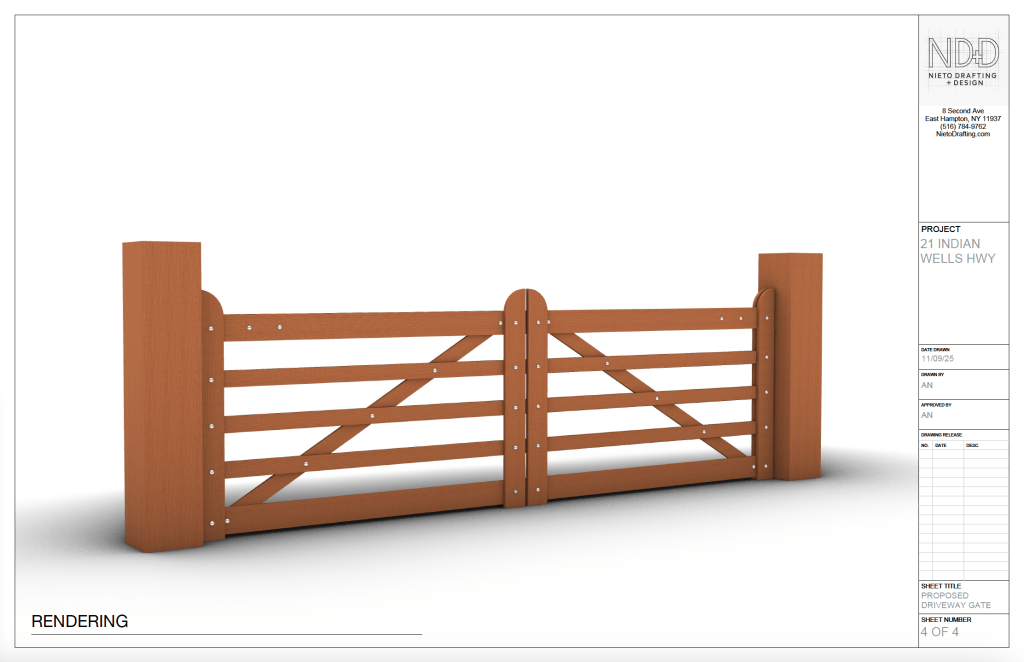

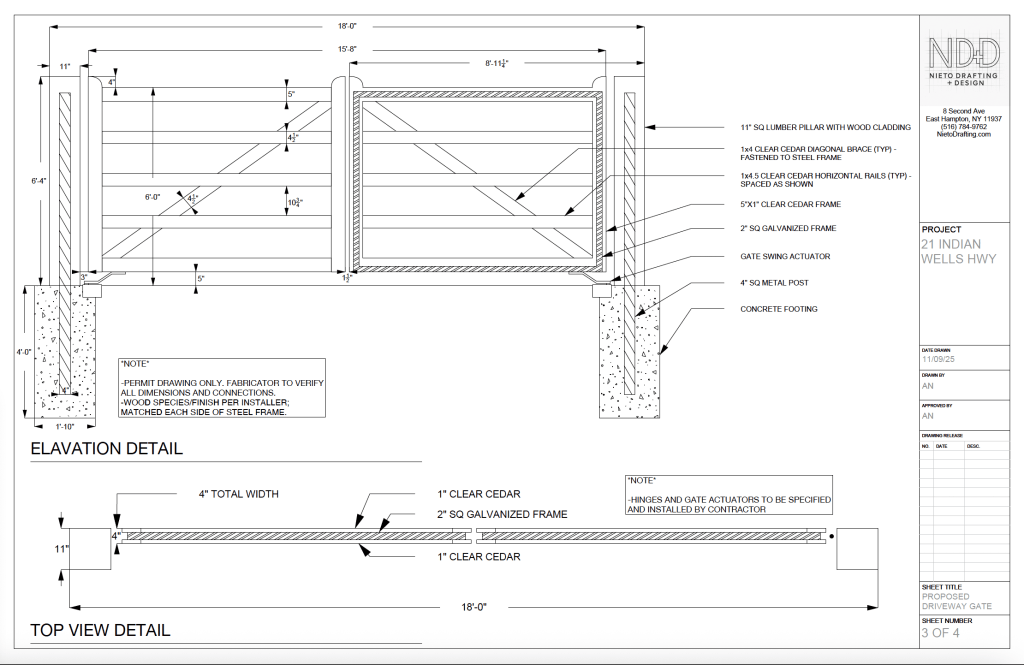

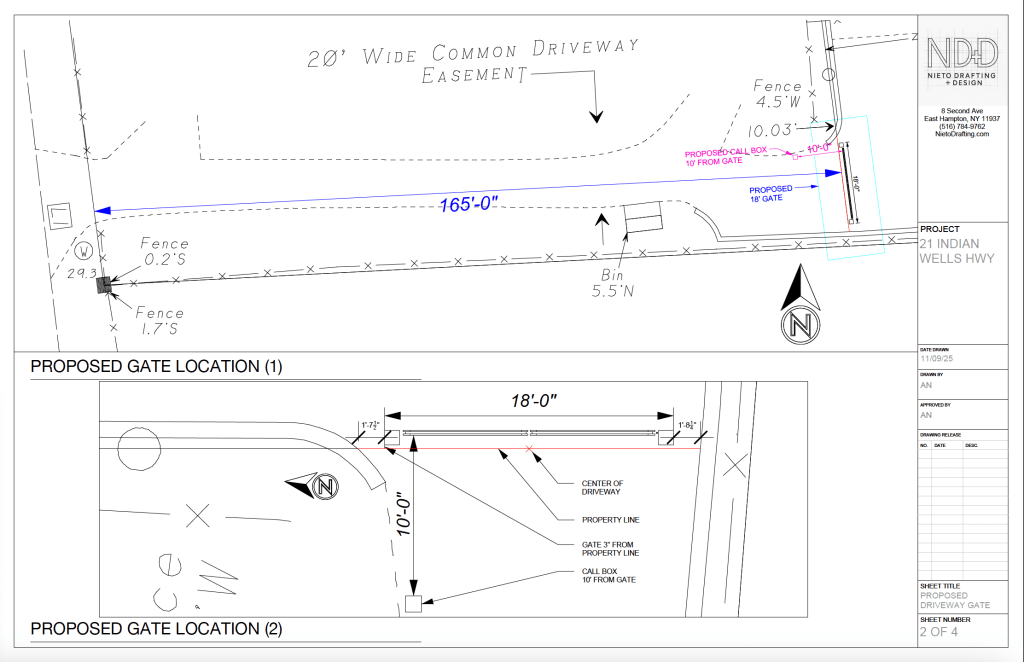

For this project, I collaborated with the homeowner and the gate contractor to develop a custom wood-and-steel driveway gate and produce all required drawings for town permitting. Working directly from the property survey, I created a full set of gate documents including detailed front elevation, plan view, actuator/hinge callouts, material labeling, and accurate site placement based on setback requirements. The final package provides a clear, code-compliant representation of the proposed gate for submission to the Town of Amagansett.
